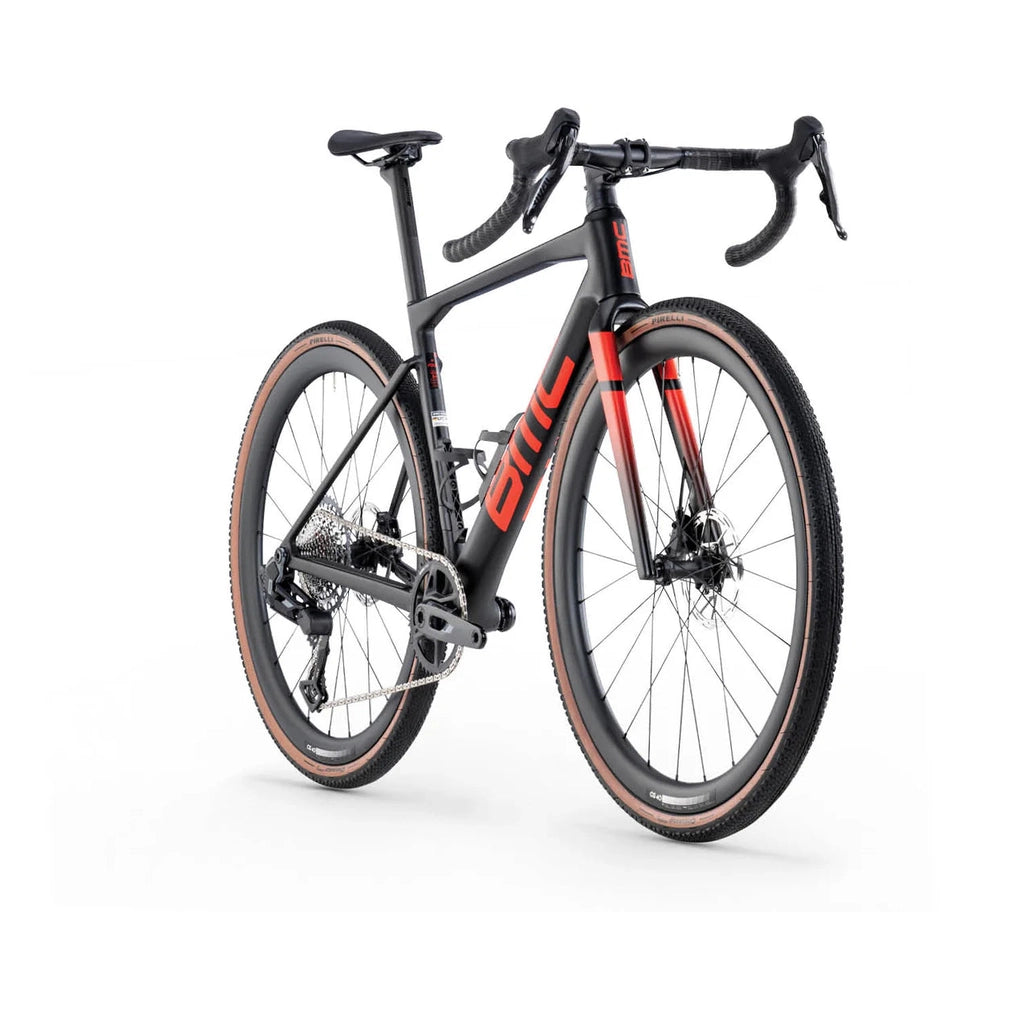

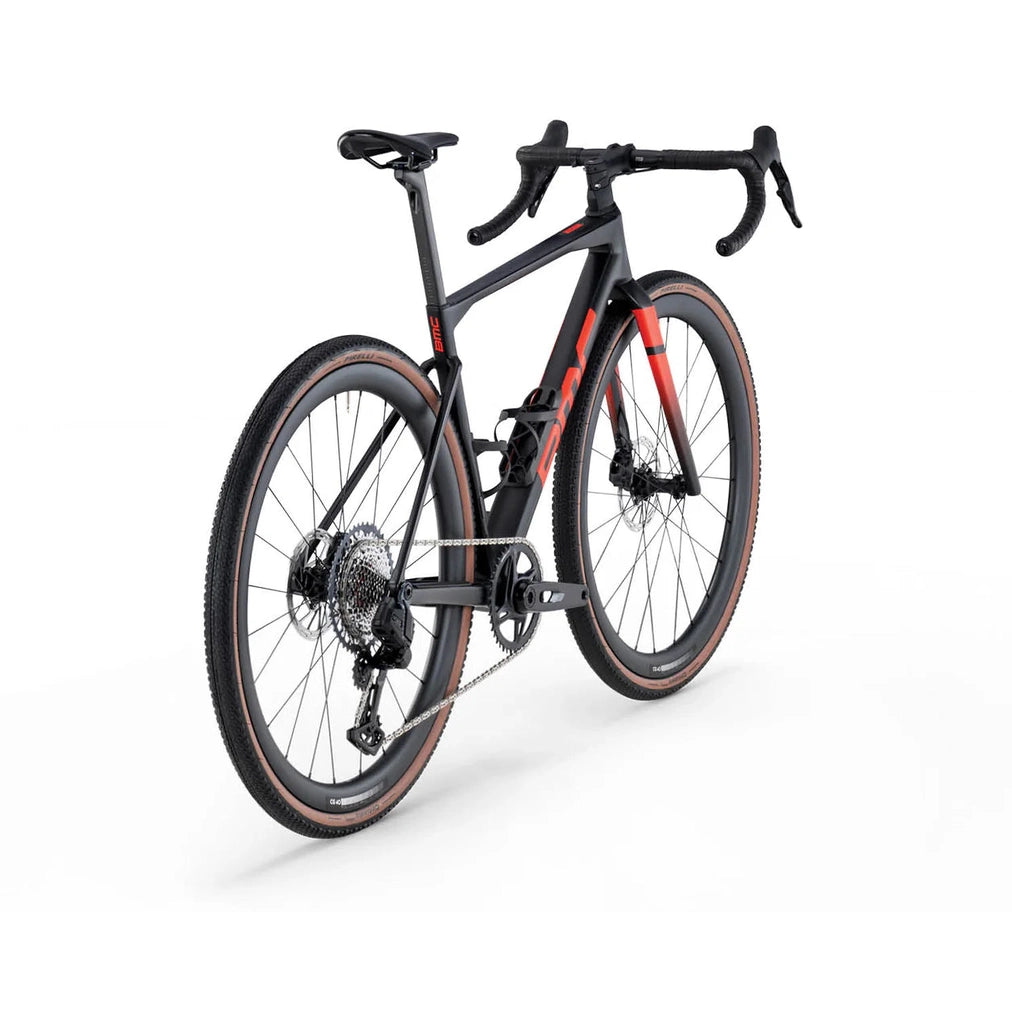

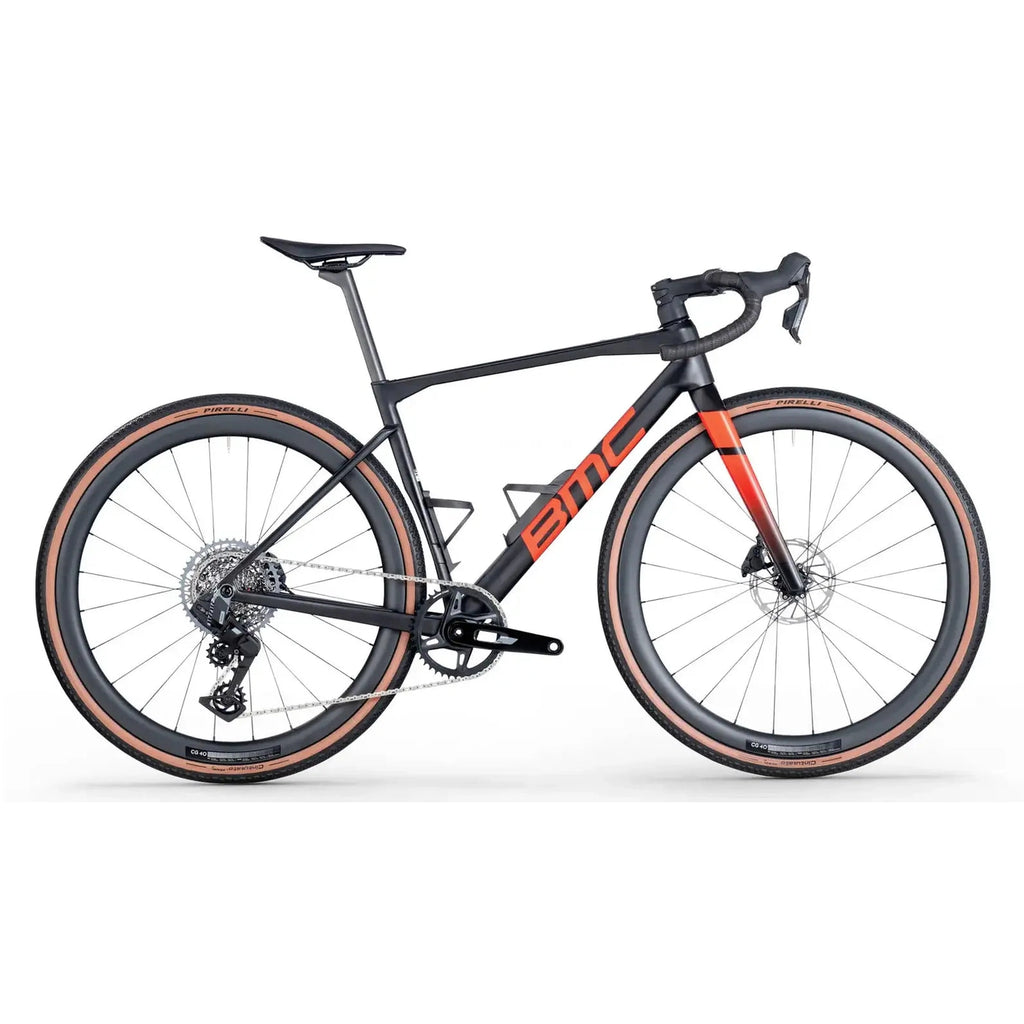

BMC Kaius 01 FOUR - Designed for speed and built for rough terrain. Comes with ICS cable integration , CG 40 carbon wheels and the latest SRAM Rival AXS XPLR groupset.

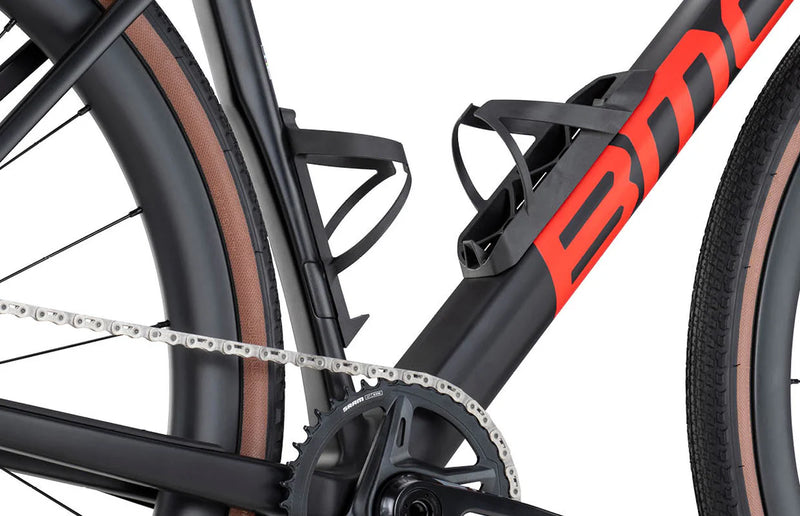

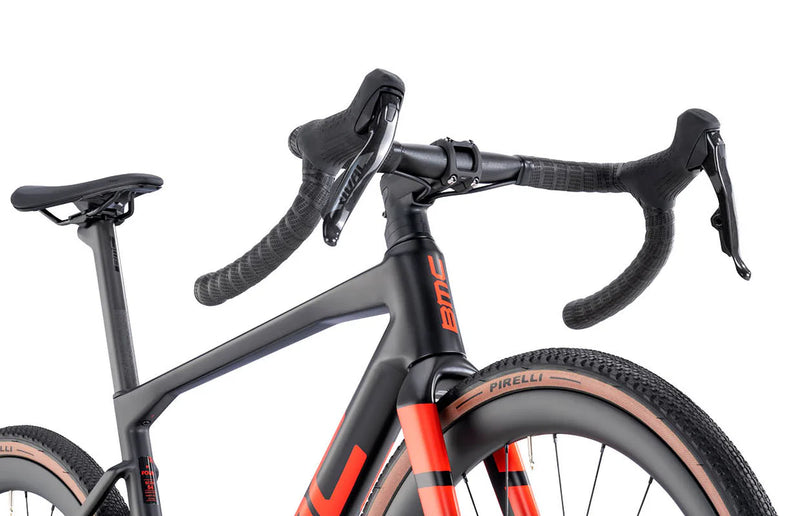

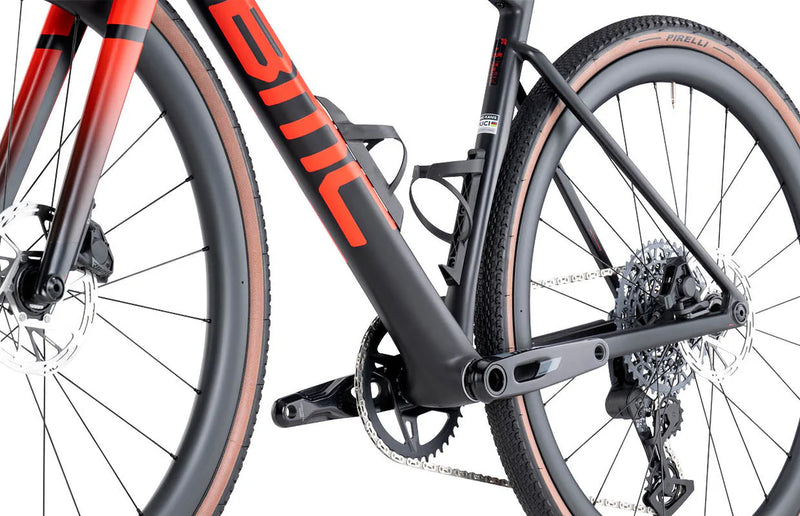

Gravel bike, redefined. The Kaius 01 is the result of BMC's focus on building fast gravel bikes. Developed in the Impec Lab with cutting-edge carbon fiber technology and specifically designed to be as fast as possible on gravel. The race-optimized geometry provides the perfect balance of stiffness, light weight and compliance - improving grip, stability and climbing efficiency in demanding terrain. With the RSM01 stem with ICS cable integration , BMC's new HB-D4-03 aluminum handlebar and Aerocore design , the bike cuts through the wind and propels forward. Equipped with top-of-the-line components like the latest SRAM Rival AXS XPLR 1 x 13 gears and CG 40 carbon wheels , the Kaius 01 is ready to chase podiums and push the limits on every lap.
| Ram | Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Framgaffel | Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |

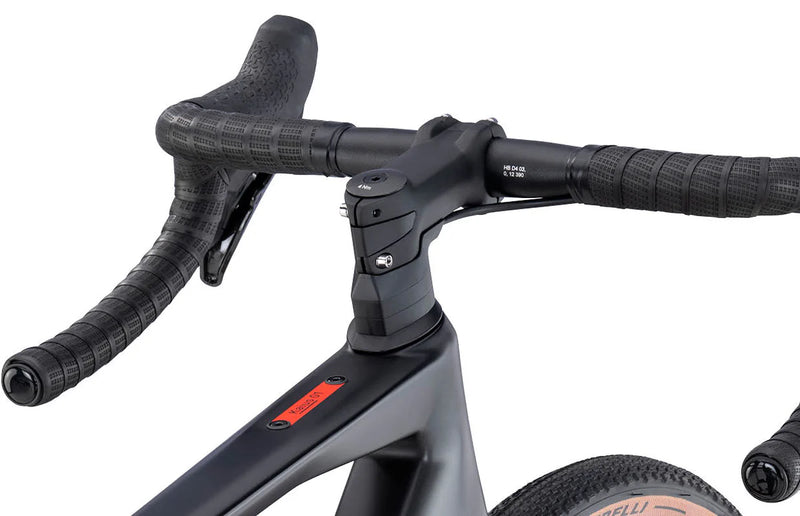

| Cockpit | BMC RSM 01 | Integrated Cockpit System Technology, Handlebar: BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare |
| Sadelstolpe | Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
| Sadel | Fizik Vento Argo X5 | 140mm |
| Vevparti | SRAM Rival XPLR AXS Wide (FC-RIV-1W-E1) |
| Klingor fram | 42T |
| Kassett | SRAM Rival XPLR (CS-XG-1351-E1) |
| Kassettstorlek | 10-46T |
| Kedja | SRAM Rival (CN-RIV-E1) |
| Bakväxel | SRAM Rival XPLR AXS (RD-RIV-1E-E1) |
| Växelhandtag | SRAM Rival AXS (ED-RIV-E1) |
| Antal växlar | 1x13 |
| Vevlager | SRAM Press Fit DUB |
| Bromshandtag | SRAM Rival AXS (ED-RIV-E1) |
| Bromsok | SRAM Rival AXS (ED-RIV-E1) |
| Bromsskivor | SRAM Paceline | Center cap 160/160mm |
| Fälgar | CG 40 Carbon | Tubeless Ready | 40mm |
| Nav | CG 40 |
| Däck | Pirelli Cinturato Gravel H | 40mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 44mm measured tire |
| Vikt utan pedaler | 8.3kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 120kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Cyklistens längd | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 390 | 397 | 401 | 405 | 410 | 414 |
| Stack | 510 | 530 | 550 | 570 | 595 | 620 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
| Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
| Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
| Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
| Stem Angle | -12,5 | -12,5 | -12,5 | -12,5 | -12,5 | -12,5 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
| Trail | 68 | 68 | 68 | 68 | 68 | 68 |
| Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
