BMC Speedmachine 01 FOUR - Triathlon bike built for speed.
Tailored for your triathlon goals: premium carbon composite frame, cutting-edge aerodynamics and extremely reliable gear system.

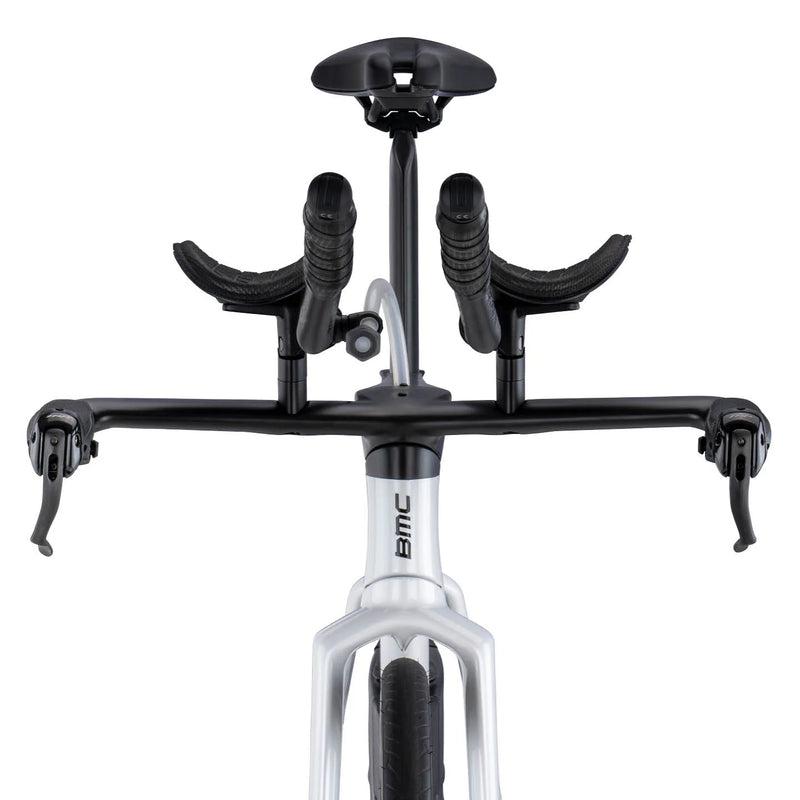

True aerodynamics, true speed, true control. The BMC Speedmachine 01 FOUR combines aerodynamics with unparalleled riding position adjustment capabilities, giving you an edge beyond the lab and wind tunnel. Whether it's triathlon or time trial, and regardless of the competition format, you'll benefit from the engineering expertise of Red Bull Advanced Technology and BMC's Impec Lab. Our Speedmachine 01 FOUR is equipped with components that put you in the spotlight—like Profile Design Aeria 3 armrests and extensions, reliable Shimano 105 Di2, and Fizik Transiro Aeris—this bike is built for speed that can handle the demands of the road.

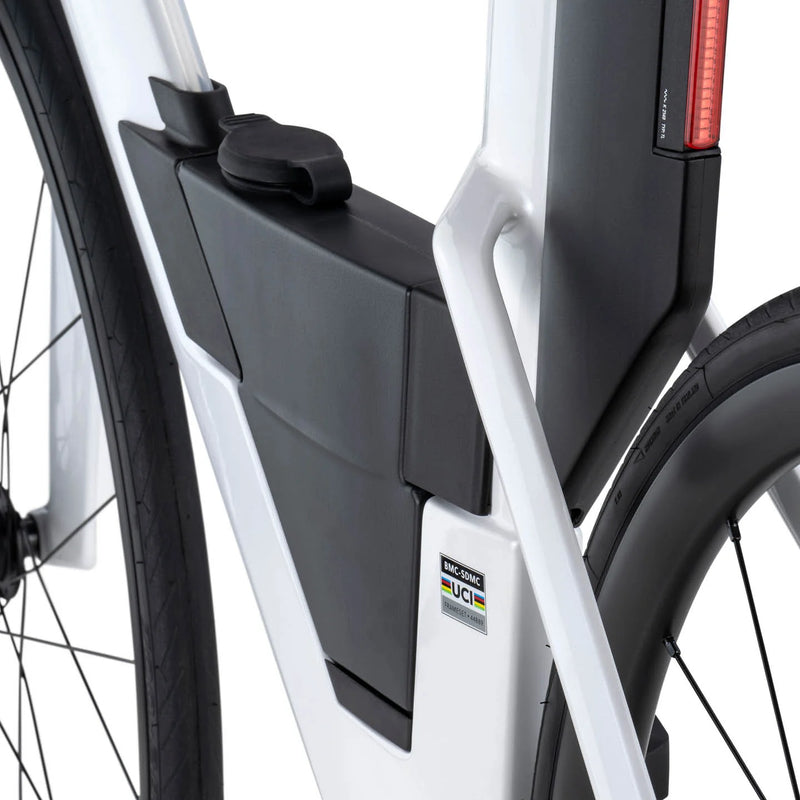

| Ram | Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle |

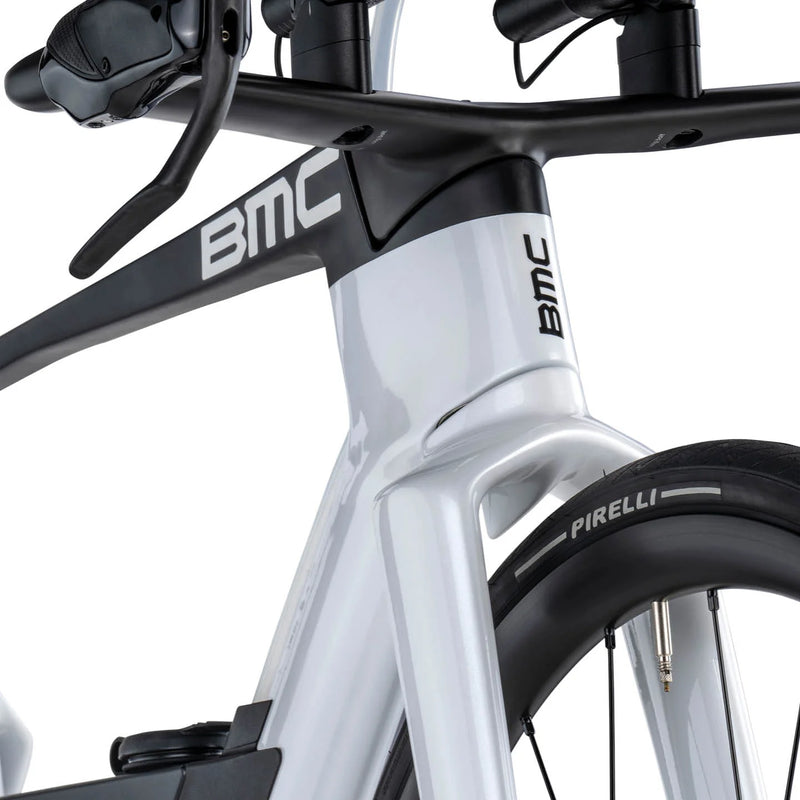

| Framgaffel | Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle |

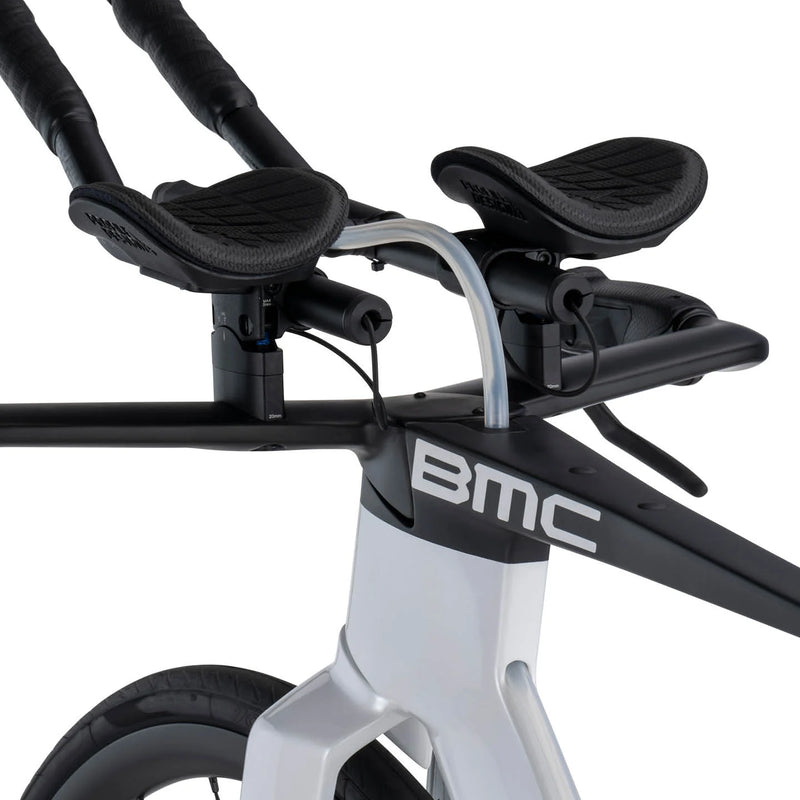

| Cockpit | BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 26a Aluminum Aerobar Extensions |
| Sadelstolpe | Speedmachine 01 | 01 Premium Carbon Aero Seatpost | 0mm, 12.5mm, 25mm Offsets |
| Sadel | Fizik Transiro Aeris Long Distance R5 |
| Vevparti | SHIMANO 105 (FC-R7100) |
| Klingor fram | 52-36T |
| Kassett | SHIMANO 105 (CS-R7101) |
| Kassettstorlek | 11-34T |
| Kedja | SHIMANO CN-M6100 |
| Framväxel | SHIMANO 105 Di2 (FD-R7150) |
| Bakväxel | SHIMANO 105 Di2 (RD-R7150) |
| Växelhandtag | SHIMANO Switch buttons Di2 (SW-R9160 & SW-R9150) |
| Antal växlar | 2x12 |
| Vevlager | Praxis T47 EB 68/73mm SHIMANO |
| Bromshandtag | TRP TT HYDRO HD-T910 Hydraulic |
| Bromsok | TRP TT HYDRO HD-T910 Hydraulic |
| Bromsskivor | TRP R160C04M | Centerlock 160mm front and rear |
| Fälgar | AR 27 | Tubeless Ready | 27mm |
| Nav | CL-712 & RXC-142 Center Lock |
| Däck | Pirelli P Zero Road TLR | Tubeless | 28mm [or] Vittoria Rubino IV | Tube type | 28mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 30mm measured tire |
| Vikt utan pedaler | 10.1kg | Size M as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Storlek | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Crank Length | 165 | 170 | 172.5 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
