The BMC Teammachine R 01 FIVE is a bike where every detail counts, because every pedaling matters.
Developed in collaboration with Red Bull Advanced Technologies, the Teammachine R 01 FIVE road bike sets a new standard for racing performance. Designed to deliver in the most demanding conditions, this carbon race bike is equipped with a Shimano 105 Di2 drivetrain, aerodynamically optimized CR 50 carbon wheels and BMC's groundbreaking ICS Aero one-piece cockpit. That's why the BMC Teammachine R 01 FIVE is the bike for those looking for unmatched speed and precision every race day of your season.
News for the new Teammachine R

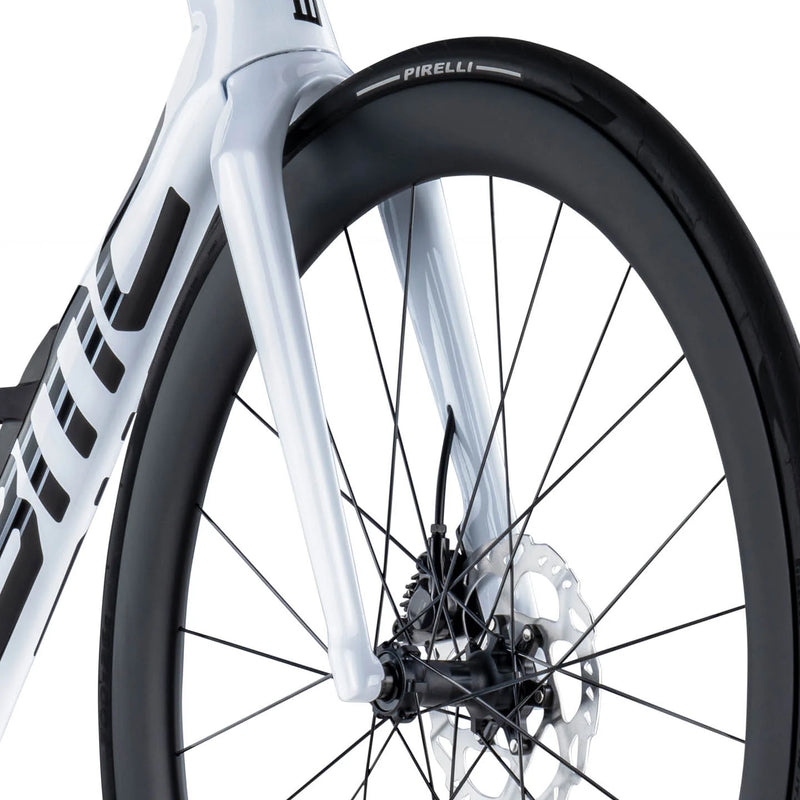

Halo Fork:
Extra wide fork legs, unlike anything else in the bunch. Keeps turbulence from the front wheel away from the frame.

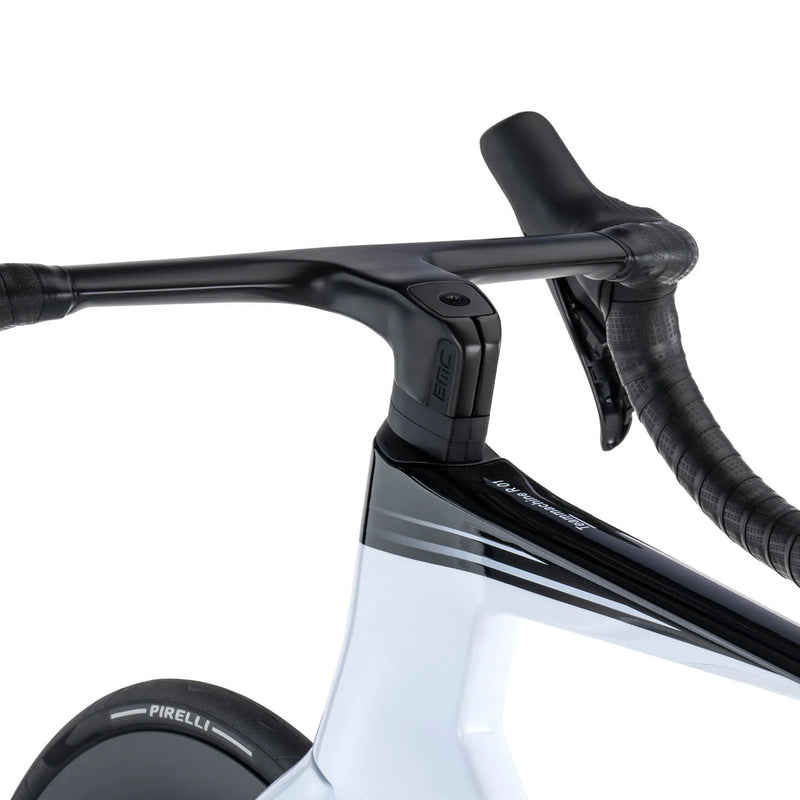

ICS Carbon Aero Cockpit:
Progressive and dynamic shape is perfect for this bike. With a narrower width at the top, the handlebars provide an efficient aero position. Combined with more width in the stem, you also get superior control at high speeds.

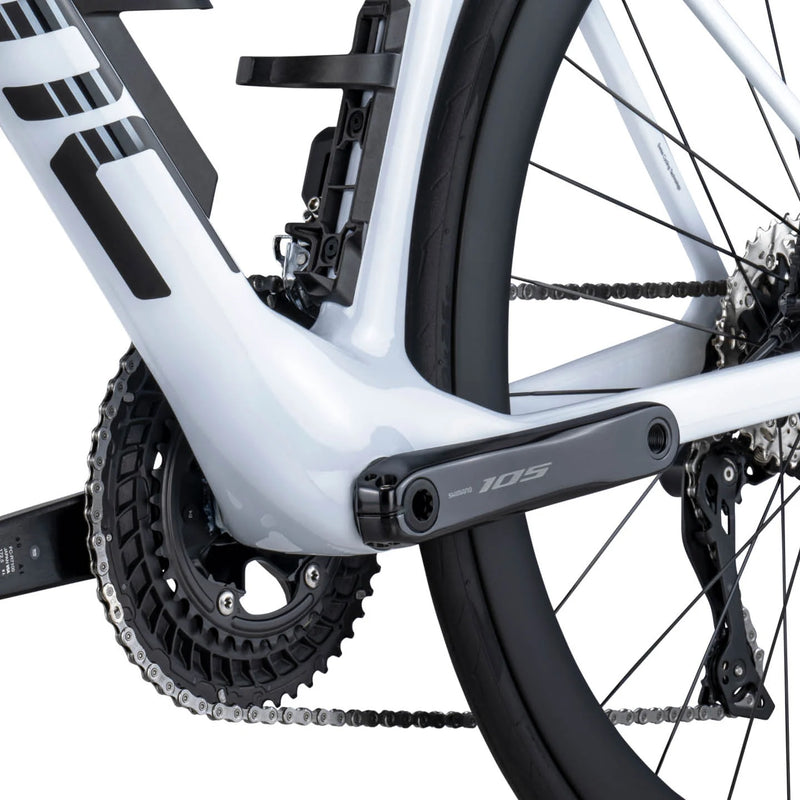

Deep Bottom Bracket Area:
BMC calls it the "Mariana Bottom Bracket" because it's the lowest-positioned bottom bracket we've ever made on a road bike. This optimizes the surface area for less drag.

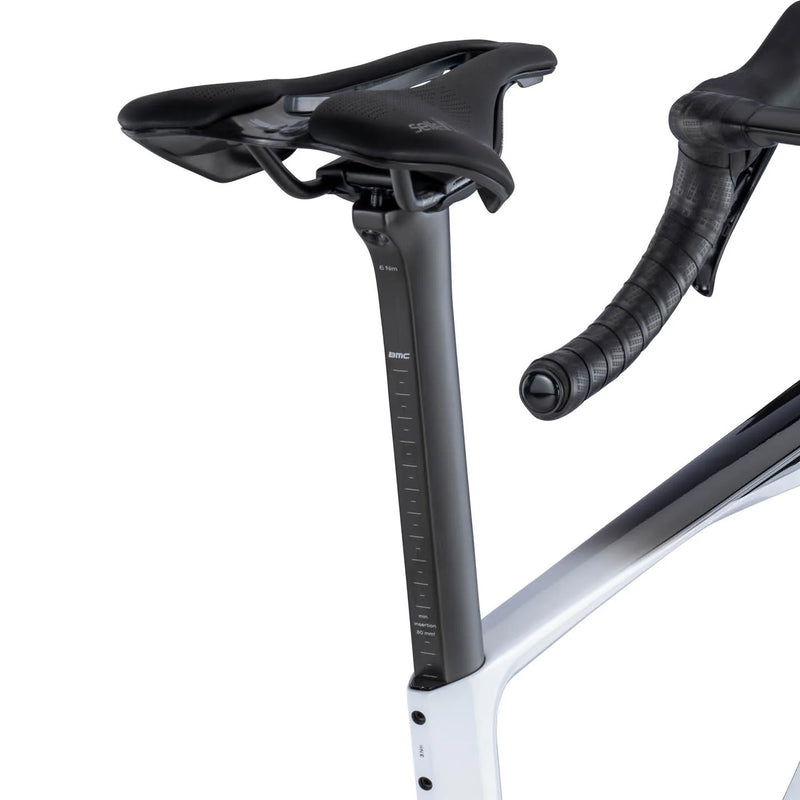

Newly developed seatpost:
The new seatpost is narrower, deeper, more compliant and lighter than ever. The seat clamp has a new mechanism that makes it easier to adjust the saddle height. Plus, an integrated number tag holder makes it easier to get ready for the race.
| Ram | Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Framgaffel | Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |
| Cockpit | ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare |
| Sadelstolpe | Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset |
| Sadel | Selle Italia SLR Boost Superflow | Manganese Rail | 145mm |
| Vevparti | SHIMANO 105 (FC-R7100) |
| Klingor fram | 52-36T |
| Kassett | SHIMANO 105 (CS-R7101) |
| Kassettstorlek | 11-34T |
| Kedja | SHIMANO CN-M6100 |
| Framväxel | SHIMANO 105 Di2 (FD-R7150) |
| Bakväxel | SHIMANO 105 Di2 (RD-R7150) |
| Växelhandtag | SHIMANO 105 Di2 (ST-R7170) |
| Antal växlar | 2x12 |
| Vevlager | SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B) |
| Bromshandtag | SHIMANO 105 (BR-R7170) |
| Bromsok | SHIMANO 105 (BR-R7170) |
| Bromsskivor | SHIMANO SM-RT70 | Centerlock [or] SHIMANO 105 (RT-CL700) 160mm F 160mm W |
| Fälgar | CR 50 Carbon | Tubeless Ready | 50mm |
| Nav | TXC-812 & TXC-240 Center Lock |
| Däck | Pirelli P Zero Race TLR | 26mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 30mm measured tire |
| Vikt utan pedaler | 7.7kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Längd på cyklist i cm | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach MM (reach) | 368 | 378 | 387 | 393 | 402 | 409 |
| Seat Tube MM (st) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top Tube MM (tt) | 522 | 532 | 552 | 562 | 582 | 598 |
| Head Tube MM (ht) | 108 | 133 | 149 | 165 | 185 | 211 |
| Seat Tube Angle (sa) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 100 | 100 | 110 | 110 | 120 |
| Stem Angle | -6 | -6 | -6 | -6 | -6 | -6 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 117 | 117 | 117 | 117 | 117 | 117 |
| Bar Reach MM | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
| Post Offset MM | 10 | 10 | 10 | 10 | 10 | 10 |
| Seatpost Length MM | 335 | 335 | 385 | 385 | 405 | 405 |
