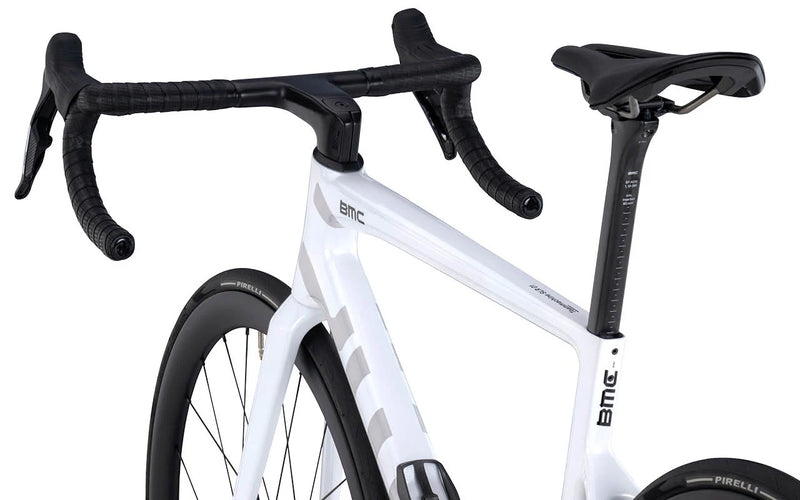

BMC Teammachine SLR 01 THREE - Heretic – faster than ever! Light, stiff and lightning fast. Featuring BMC's 01 carbon fiber frameset, latest SRAM Force AXS drivetrain, power meter, ICS EVO cockpit and CR 40 SL carbon fiber wheels.

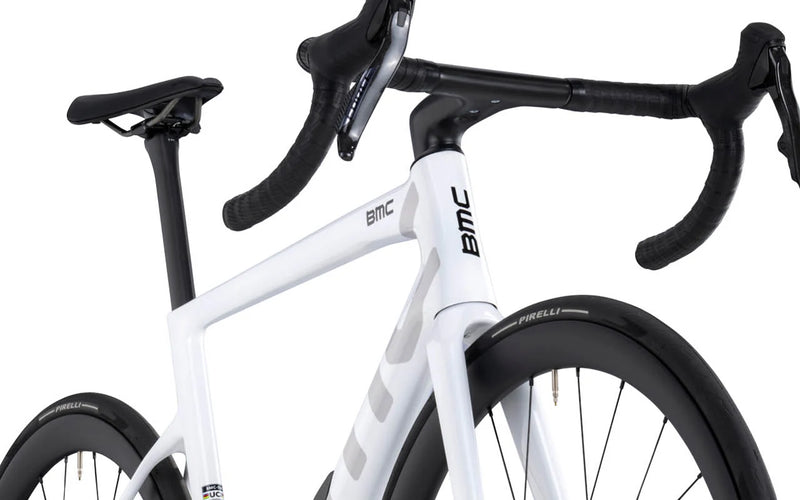

Defy the laws of gravity with the all-new BMC Teammachine SLR 01. This is BMC's lightest and most advanced frame ever – designed to maximize every watt and convert your power into pure speed. Want even more speed? The improved aerodynamics make it almost as fast as the Teammachine R 01 – without sacrificing feel or control.
BMC's Impec Lab engineers have created a bike that combines raw performance with the unique BMC feel – thanks to TCC Race comfort, perfect steering and a geometry that's fine-tuned to suit you.
Equipped with the latest SRAM Force AXS group, integrated power meter, exclusive ICS Carbon Evo one-piece cockpit and the high-quality CR 40 SL wheelset.
The BMC Teammachine SLR 01 THREE is more than just a bike – it's your ticket to the top of the mountain. The mountain passes await. Are you ready?

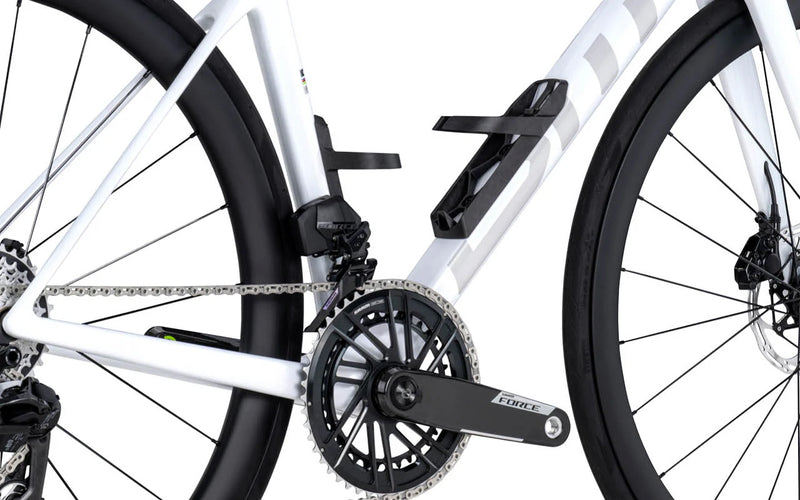

| Ram | Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Framgaffel | Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61 |

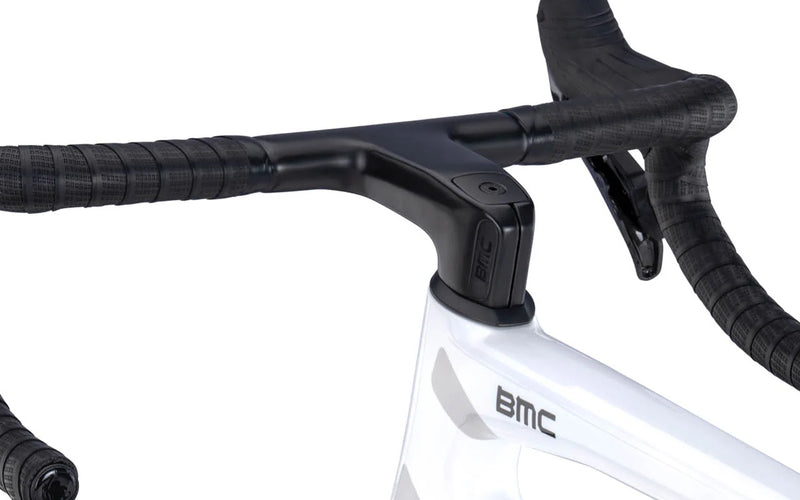

| Cockpit | ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare |
| Sadelstolpe | Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset |
| Sadel | Fizik Argo Vento R3 | 140mm |
| Vevparti | SRAM Force AXS (FC-FRC-P-E1) |
| Klingor fram | 48-35T |
| Wattmätare | YES, SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1) |
| Kassett | SRAM Force (CS-XG-1270-E1) |
| Kassettstorlek | 10-33T |
| Kedja | SRAM Force (CN-FRC-E1) |
| Framväxel | SRAM Force AXS (FD-FRC-E-E1) |
| Bakväxel | SRAM Force AXS (RD-FRC-E-E1) |
| Växelhandtag | SRAM Force AXS (ED-FRC-E1) |
| Antal växlar | 2x12 |
| Vevlager | SRAM Press Fit DUB |
| Bromshandtag | SRAM Force AXS (ED-FRC-E1) |
| Bromsok | SRAM Force AXS (ED-FRC-E1) |
| Bromsskivor | SRAM Centerline X | Centerlock 160mm F 160mm W |
| Fälgar | CR 40 SL Carbon | Tubeless Ready | 40mm |
| Nav | TXC-812 & TXC-240 Center Lock |
| Däck | Pirelli P Zero Race TLR | 26mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 32mm measured tire |
| Vikt utan pedaler | 7.0kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 127 | 127 | 127 | 127 | 127 | 127 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400/436 | 400/436 | 400/436 | 400/436 | 400/436 | 400/436 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 369 | 369 | 369 | 369 | 369 | 369 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Seat Tube | 422 | 464 | 491 | 509 | 530 | 555 |
| Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -12 | -12 | -12 | -12 | -12 | -12 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
