BMC Teammachine SLR ONE – built for performance. Lead the pack with a race-ready setup. The new SRAM Force AXS drivetrain , one-piece integrated handlebar and carbon wheels ensure you stay ahead.

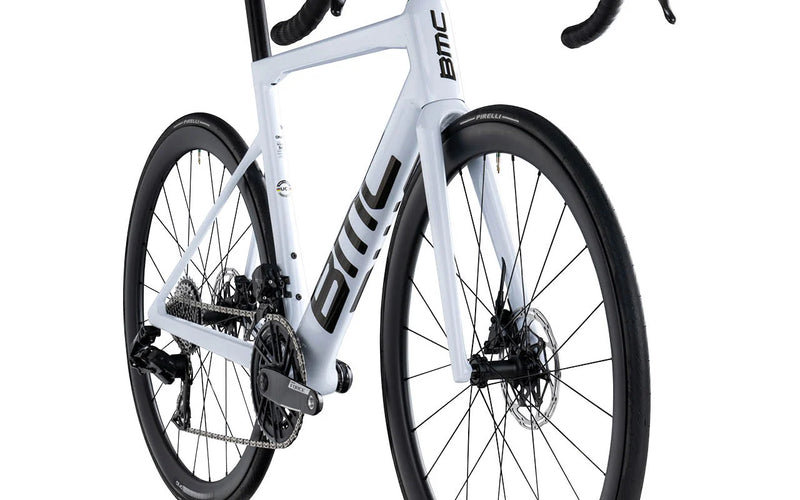

The Teammachine SLR is the result of over a decade of uncompromising development. Built from lightweight premium carbon with TCC Race damping and a D-Shape carbon seatpost, this bike delivers the legendary BMC feel. Fast, responsive and comfortable. Featuring the latest SRAM Force AXS drivetrain with power meter, BMC's exclusive ICS Carbon Evo one-piece handlebar and carbon wheels, this bike is built for riders who demand precision. A bike that sets the standard for modern road cycling.
| Ram | Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Framgaffel | Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61 |

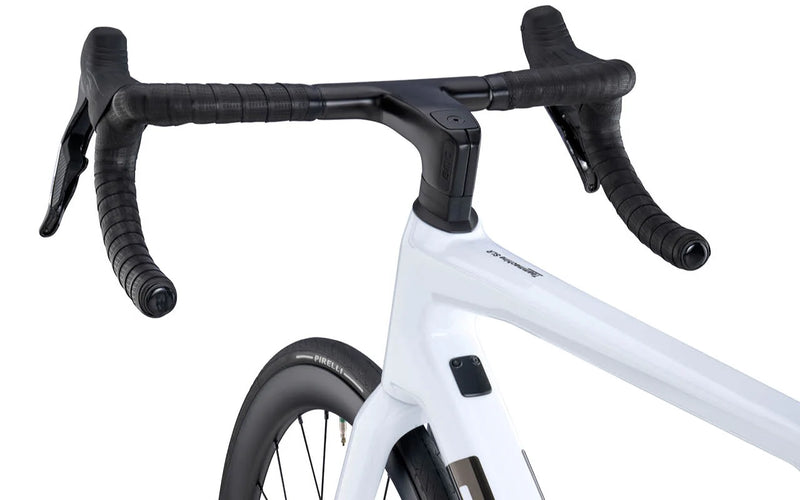

| Cockpit | ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare |
| Sadelstolpe | Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset |
| Sadel | Fizik Argo Vento R5 | 140mm |
| Vevparti | SRAM Force AXS (FC-FRC-P-E1) |
| Klingor fram | 48-35T |
| Wattmätare | YES, SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1) |
| Kassett | SRAM Force (CS-XG-1270-E1) |
| Kassettstorlek | 10-33T |
| Kedja | SRAM Force (CN-FRC-E1) |
| Framväxel | SRAM Force AXS (FD-FRC-E-E1) |
| Bakväxel | SRAM Force AXS (RD-FRC-E-E1) |
| Växelhandtag | SRAM Force AXS (ED-FRC-E1) |
| Antal växlar | 2x12 |
| Vevlager | SRAM Press Fit DUB |
| Bromshandtag | SRAM Force AXS (ED-FRC-E1) |
| Bromsok | SRAM Force AXS (ED-FRC-E1) |
| Bromsskivor | SRAM Centerline X | Centerlock 160mm F 160mm W |
| Fälgar | CRD-351 Carbon | Tubeless Ready | 35mm [or] CRD-351 SL Carbon | Tubeless Ready | 35mm [or] CR 40 Carbon | Tubeless Ready | 40mm |
| Nav | CRD-351: TXC-712 & TXC-142S Center Lock [or] CRD-351 SL: TXC-812 & TXC-240A Center Lock [or] CR 40: TXC-812 & TXC-2406 Center Lock |
| Däck | Pirelli P Zero Road TLR | Tubeless | 26mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 30mm measured tire |
| Vikt utan pedaler | 7.7kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Längd på cyklist i cm | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach MM (reach) | 368 | 378 | 387 | 393 | 402 | 409 |
| Seat Tube MM (st) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top Tube MM (tt) | 522 | 532 | 552 | 562 | 582 | 598 |
| Head Tube MM (ht) | 108 | 133 | 149 | 165 | 185 | 211 |
| Seat Tube Angle (sa) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 100 | 100 | 110 | 110 | 120 |
| Stem Angle | -6 | -6 | -6 | -6 | -6 | -6 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 117 | 117 | 117 | 117 | 117 | 117 |
| Bar Reach MM | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
| Post Offset MM | 10 | 10 | 10 | 10 | 10 | 10 |
| Seatpost Length MM | 335 | 335 | 385 | 385 | 405 | 405 |
