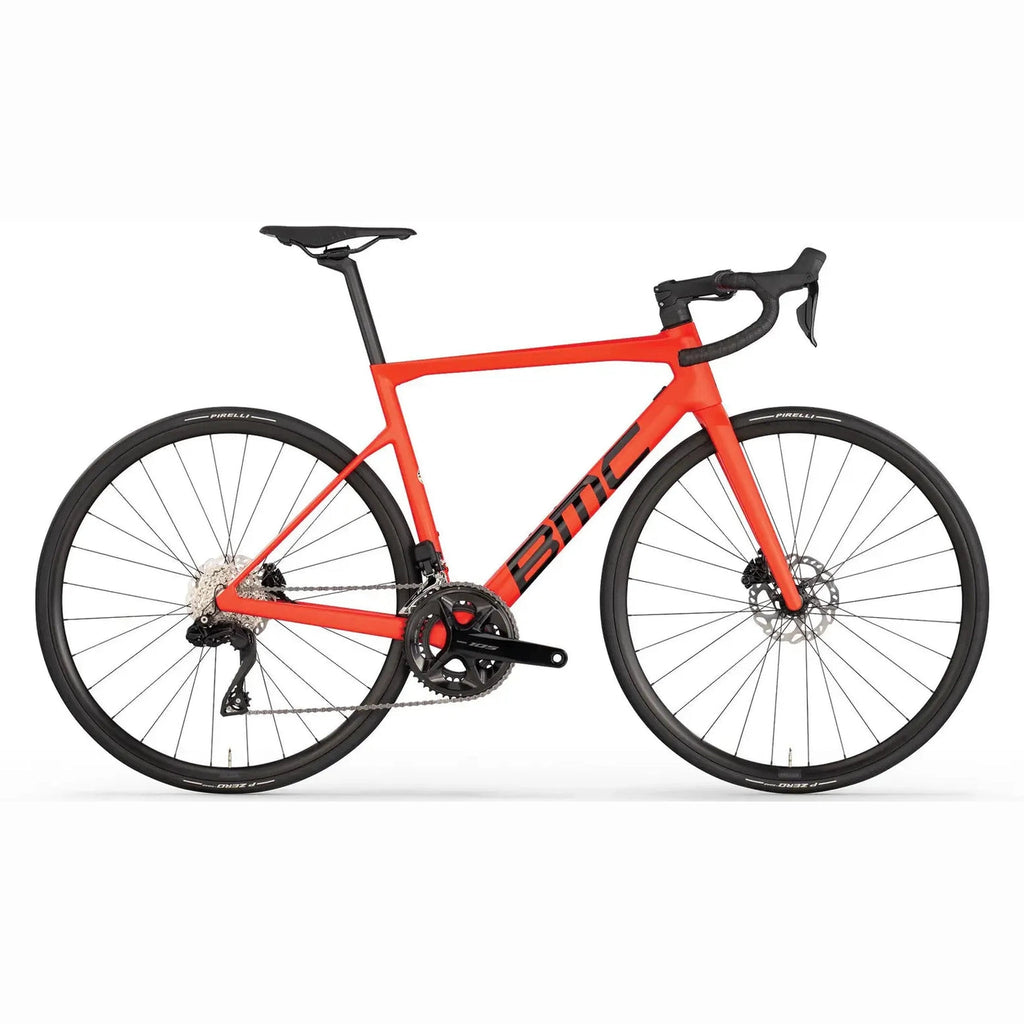

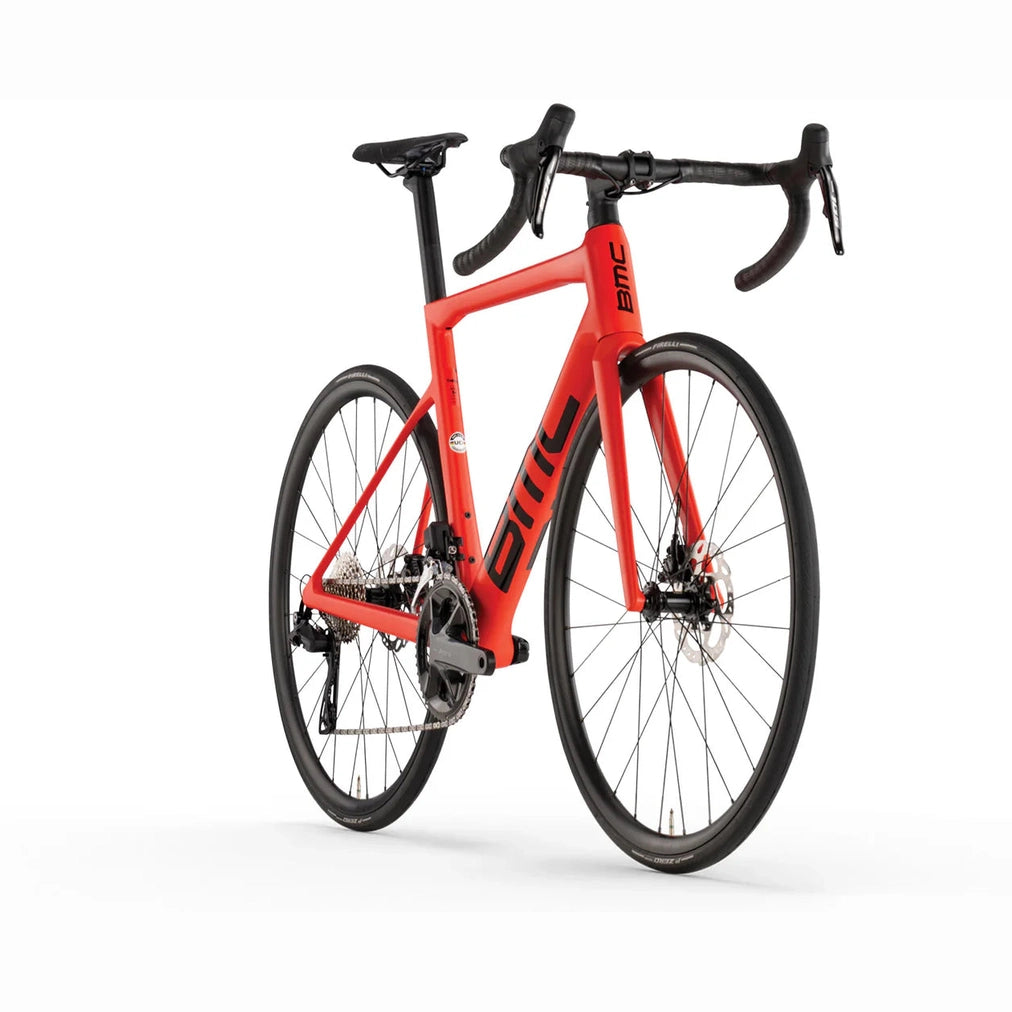

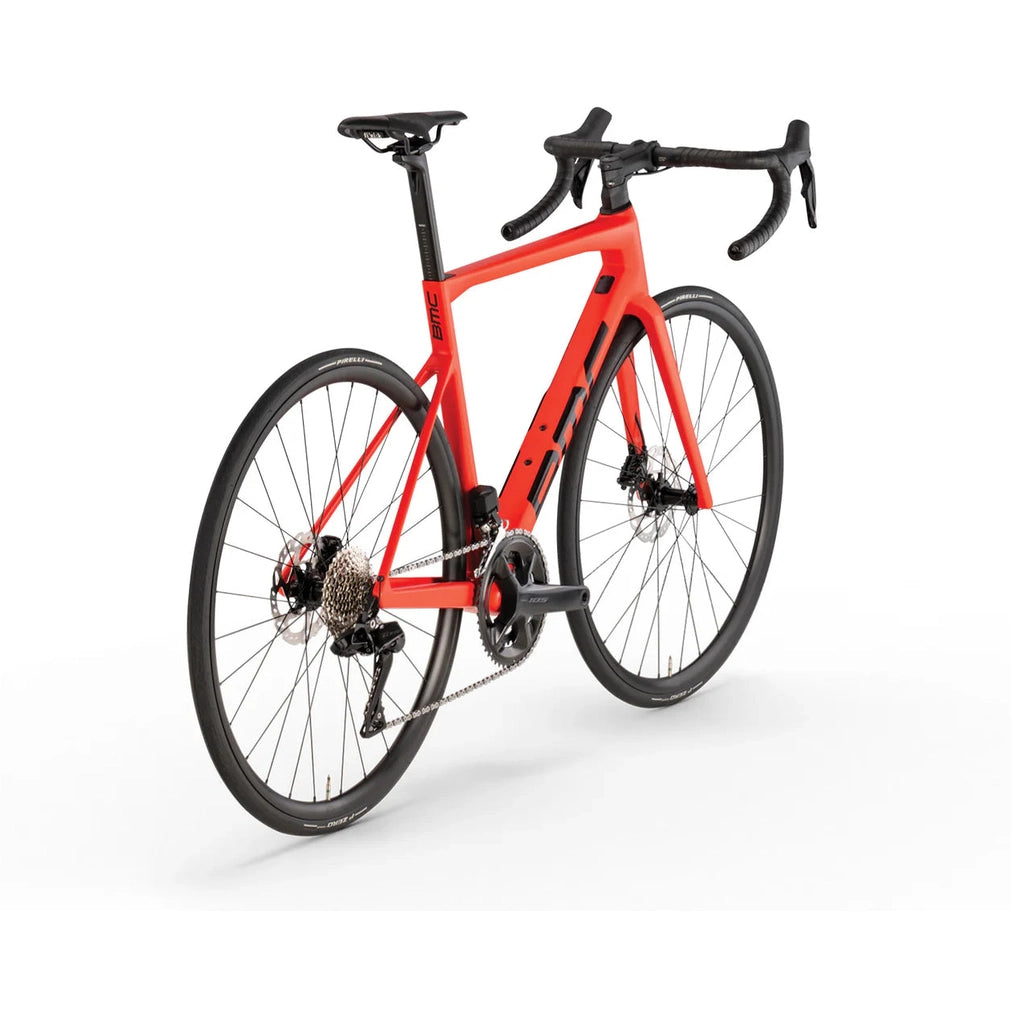

BMC Teammachine SLRs stand for speed, handling and efficiency. Equipped with ICS integrated cable routing and the new Shimano 105 Di2 group.

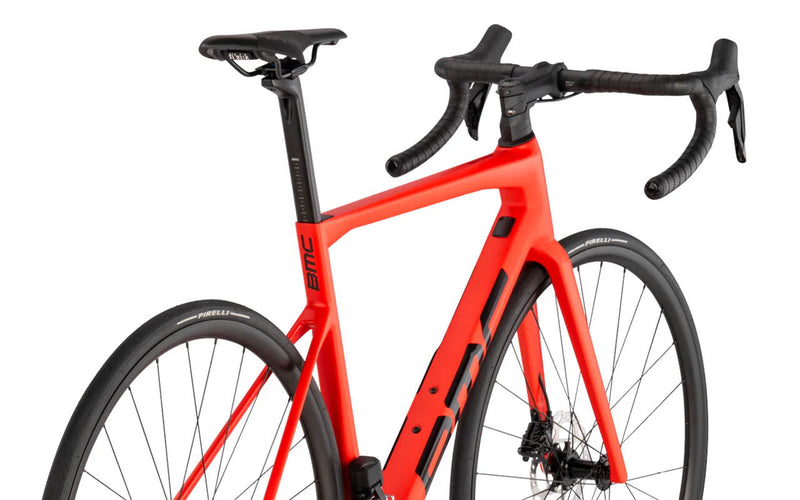

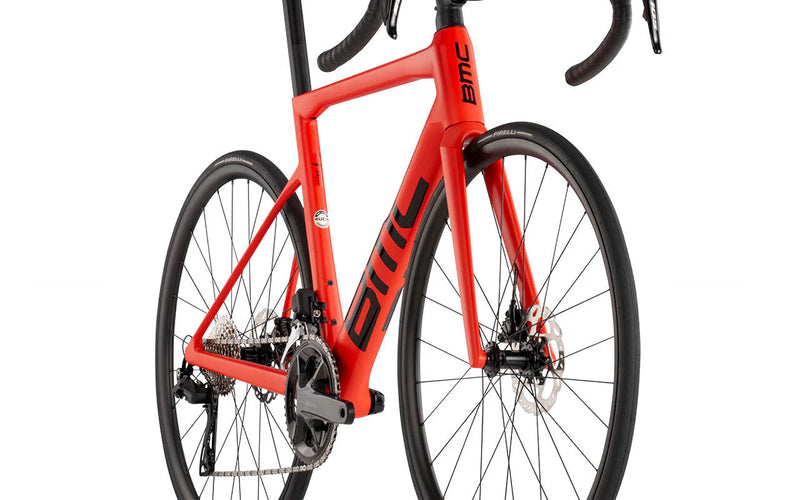

Take your racing prowess to the next level with the Teammachine SLR. Discover the benchmark for cycling innovation with a road bike that defines performance in the modern era. Crafted from lightweight Premium Carbon and equipped with TCC Race-tuned comfort and a carbon D-shaped seatpost, it delivers the signature BMC feel. With precise handling, long-lasting comfort and, of course, high speed, this race bike is built on over a decade of uncompromising development. Enhanced with details like the Aerocore bottle cage, ICS cable integration and Stealth dropouts, every component is optimized for maximum performance.
| Ram | Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Framgaffel | Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61 |
| Cockpit | Stem: BMC RSM 01 | Integrated Cockpit System Technology, Handlebar: BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare |
| Sadelstolpe | Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset |
| Sadel | Fizik Antares R7 | S-Alloy rail 140mm [or] Selle Italia Model X Superflow | FeC Alloy rail | 145mm |
| Vevparti | SHIMANO 105 (FC-R7100) |
| Klingor fram | 50-34T |
| Kassett | SHIMANO 105 (CS-R7101) |
| Kassettstorlek | 11-34T |
| Kedja | SHIMANO CN-M6100 |
| Framväxel | SHIMANO 105 Di2 (FD-R7150) |
| Bakväxel | SHIMANO 105 Di2 (RD-R7150) |
| Växelhandtag | SHIMANO 105 Di2 (ST-R7170) |
| Antal växlar | 2x12 |
| Vevlager | SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB) |
| Bromshandtag | SHIMANO 105 (BR-R7170) |
| Bromsok | SHIMANO 105 (BR-R7170) |
| Bromsskivor | SHIMANO SM-RT70 | Center cap 160/160mm |
| Fälgar | PRD23 | 23mm |
| Nav | SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock| 28H |
| Däck | Pirelli P Zero Road | 26mm |
| Tubeless information | Non-Tubeless Rims | Non-Tubeless Clincher Tire |
| Däcksutrymme | 30mm measured tire |
| Vikt utan pedaler | 8.3kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Längd på cyklist i cm | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach MM (reach) | 368 | 378 | 387 | 393 | 402 | 409 |
| Seat Tube MM (st) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top Tube MM (tt) | 522 | 532 | 552 | 562 | 582 | 598 |
| Head Tube MM (ht) | 108 | 133 | 149 | 165 | 185 | 211 |
| Seat Tube Angle (sa) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 100 | 100 | 110 | 110 | 120 |
| Stem Angle | -6 | -6 | -6 | -6 | -6 | -6 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 117 | 117 | 117 | 117 | 117 | 117 |
| Bar Reach MM | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
| Post Offset MM | 10 | 10 | 10 | 10 | 10 | 10 |
| Seatpost Length MM | 335 | 335 | 385 | 385 | 405 | 405 |
