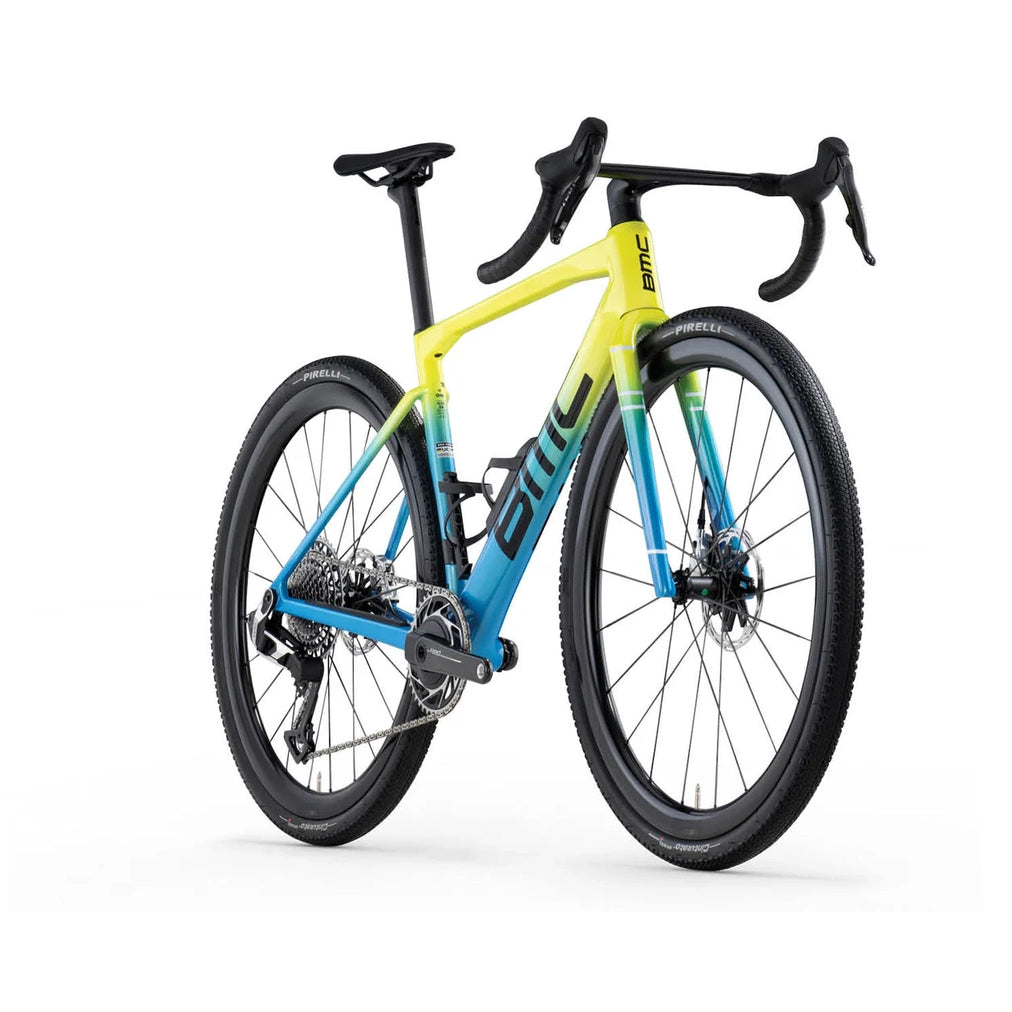

BMC Kaius 01 ONE - The ultimate gravel bike: speed, stability, performance. With an advanced carbon fiber frame, SRAM Red XPLR , ICS Carbon Aero one-piece handlebar and CG 39 SL wheels .

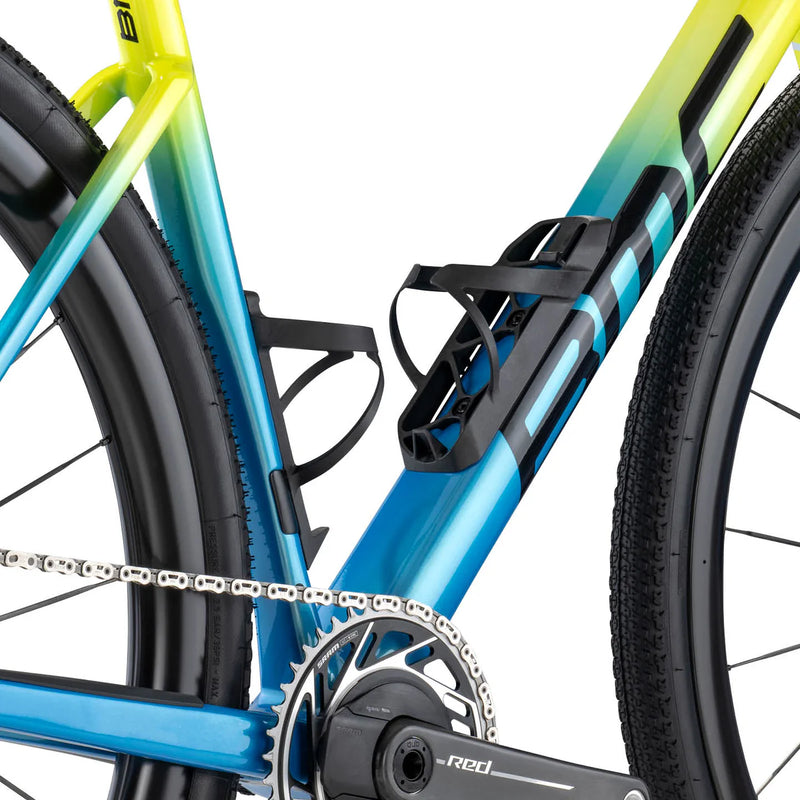

You could say that BMC is a bit obsessed with Gravel – and the Kaius 01 ONE is the result. Born from the dream of ultimate speed, it’s a machine created to dominate every race. Developed by BMC’s Impec Lab using cutting-edge carbon composite technology, the Kaius 01 ONE is the ultimate gravel bike. With race-optimized geometry, it offers the perfect balance of stiffness, light weight and compliance. This increases grip on loose surfaces, front-end stability and efficiency on climbs. With ICS cable integration and an Aerocore design , this carbon bike is built to fly. Equipped with a full SRAM Red XPLR groupset , (1 x 13) power meter and CG 39 SL carbon wheels. A bike that’s ready to dominate your next season.
| Ram | Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Framgaffel | Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle |

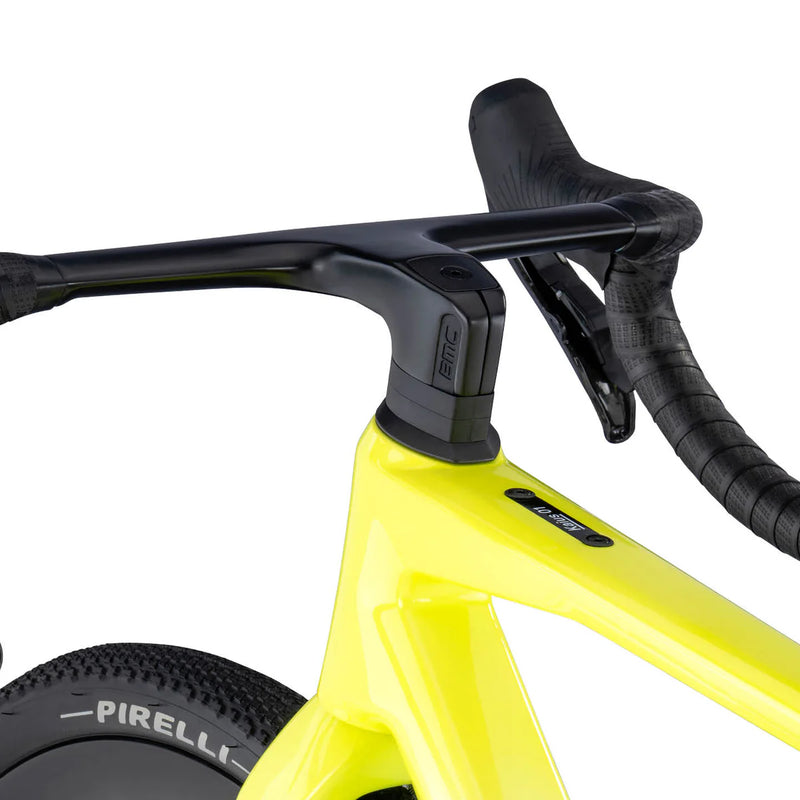

| Cockpit | ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare |
| Sadelstolpe | Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
| Sadel | Fizik Vento Argo X1 Carbon | 140mm |
| Vevparti | SRAM Red XPLR AXS DUB Wide E1 |
| Klingor fram | 1x42T |
| Wattmätare | YES, SRAM Red AXS Power Meter (FC-RED-P-E1) |
| Kassett | SRAM Red XPLR (CS-XG-1391-E1) |
| Kassettstorlek | 10-46T |
| Kedja | SRAM RED (CN-RED-E1) |
| Bakväxel | SRAM Red XPLR AXS (RD-RED-1E-E1) |
| Växelhandtag | SRAM Red AXS (ED-RED-E1) |
| Antal växlar | 1x13 |
| Vevlager | SRAM Press Fit DUB |
| Bromshandtag | SRAM Red AXS (ED-RED-E1) |
| Bromsok | SRAM Red AXS (ED-RED-E1) |
| Bromsskivor | SRAM Paceline X | Center cap 160/160mm |
| Fälgar | CG 39 SL Carbon | Tubeless Ready | 39mm |
| Nav | CG 39 SL for Carbon Spokes | Star Ratchet Freehub | Center Lock |
| Däck | Pirelli Cinturato Gravel H | 40mm |
| Tubeless information | Tubeless Rim | Tubeless Tires |
| Däcksutrymme | 44mm measured tire |
| Vikt utan pedaler | 7.5kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 120kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Cyklistens längd | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 390 | 397 | 401 | 405 | 410 | 414 |
| Stack | 510 | 530 | 550 | 570 | 595 | 620 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 387 | 387 | 387 | 387 | 387 | 387 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
| Front Center | 596 | 610 | 608 | 619 | 632 | 644 |
| Head Tube | 85 | 106 | 123 | 144 | 170 | 196 |
| Head Tube Angle | 71 | 71 | 72 | 72 | 72 | 72 |
| Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
| Seat Angle | 73 | 73 | 73 | 73 | 73 | 73 |
| Seat Tube | 428 | 452 | 468 | 493 | 513 | 533 |
| Seatpost Length | 280 | 320 | 360 | 360 | 400 | 400 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 684 | 722 | 756 | 780 | 798 | 818 |
| Stem Angle | -12,5 | -12,5 | -12,5 | -12,5 | -12,5 | -12,5 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 546 | 559 | 569 | 579 | 592 | 604 |
| Trail | 68 | 68 | 68 | 68 | 68 | 68 |
| Wheelbase | 1003 | 1017 | 1015 | 1026 | 1039 | 1051 |
