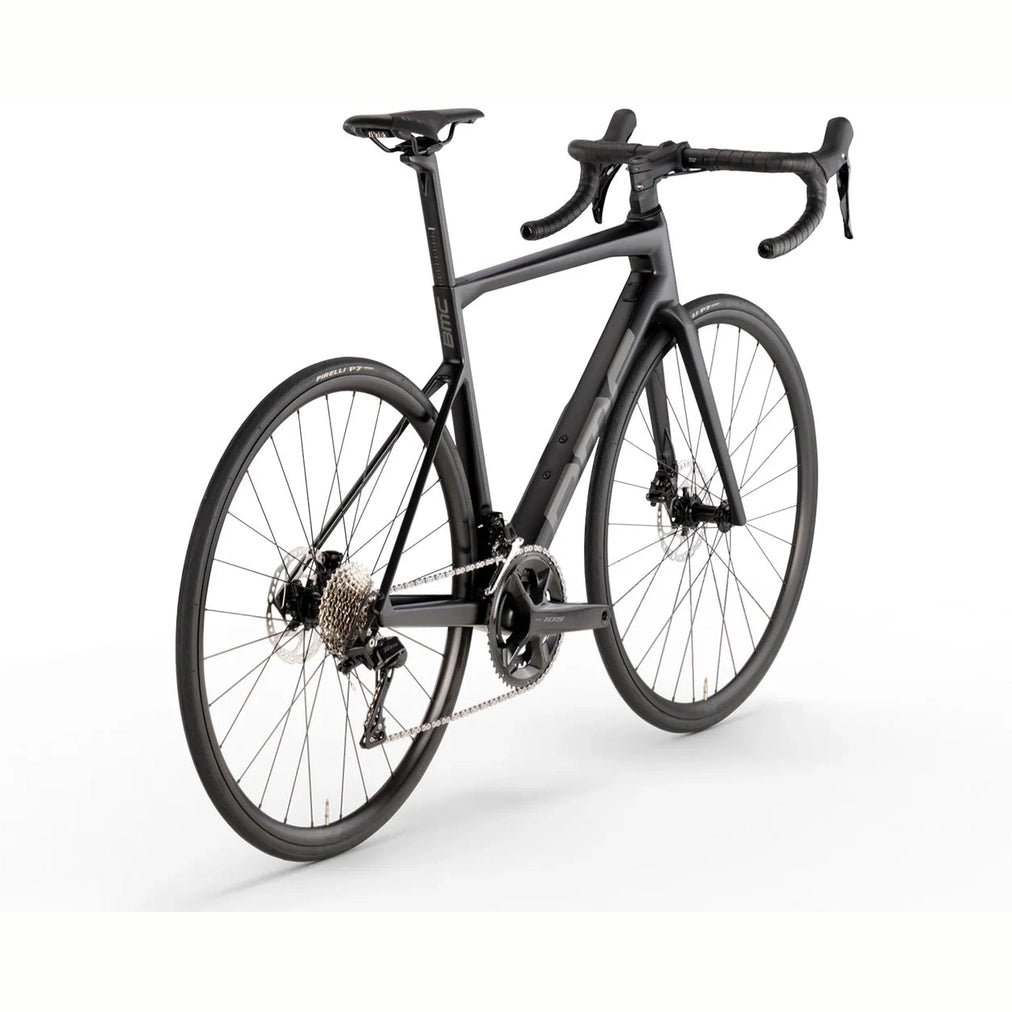

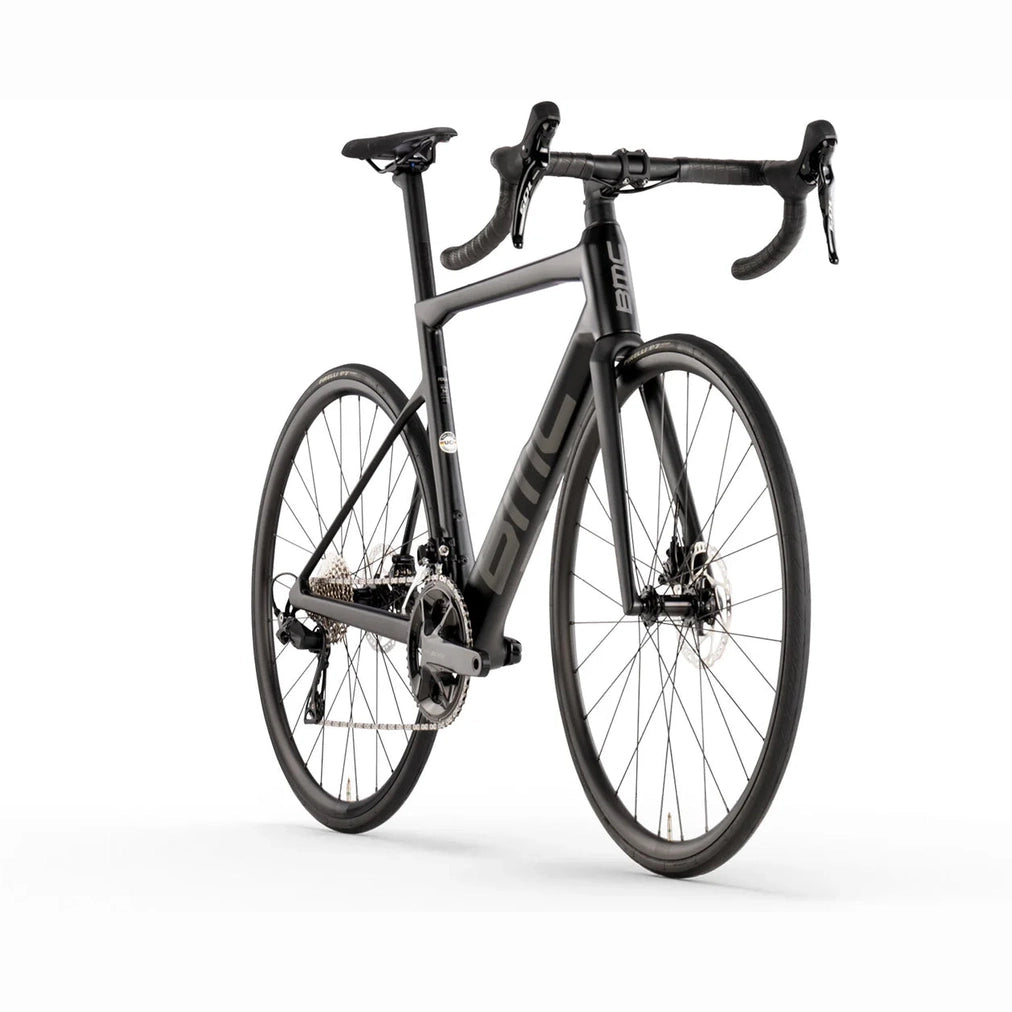

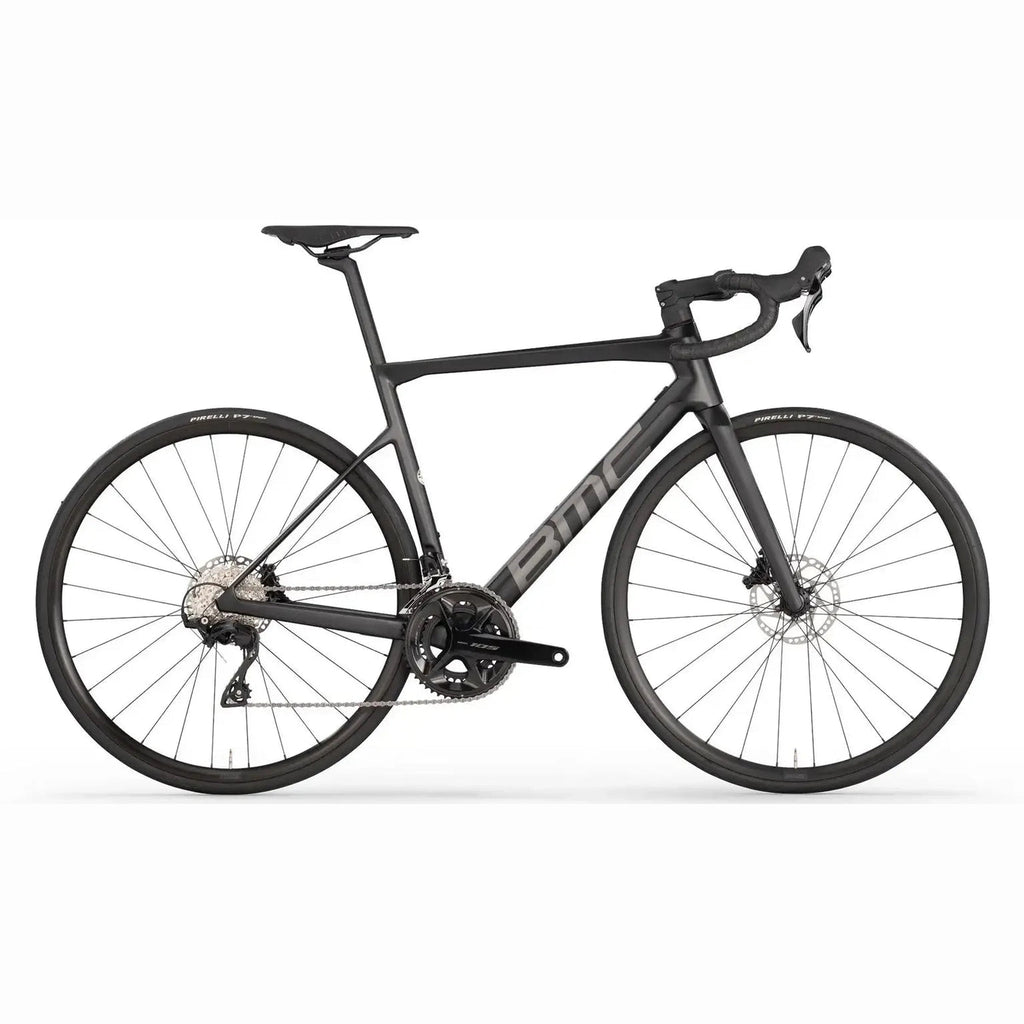

Teammachine SLR FOUR - Experience the gold standard of comfort, control and speed with the BMC Teammachine SLR. Premium carbon fibers, perfectly integrated cable routing and reliable Shimano 105.

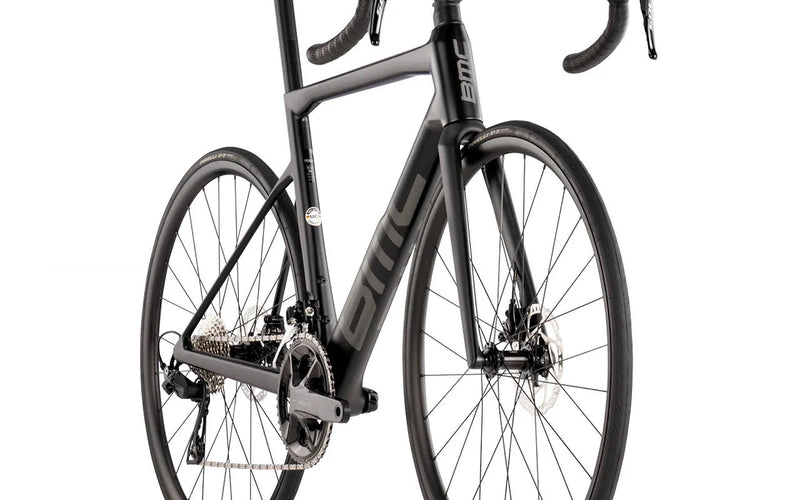

Teammachine SLR – a bike that brings groundbreaking innovation and performance to a more accessible level. Crafted from lightweight Premium Carbon with a TCC Race-optimized frame and the classic D-shaped carbon seatpost, this fine road bike offers the perfect balance of speed, control and comfort. Designed for maximum efficiency, it features integrated Aerocore bottle cages, ICS cable routing and Stealth dropouts for optimal aerodynamics. Decades of development have shaped every detail, resulting in a sleek, efficient machine ready for your most demanding rides.
| Ram | Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Framgaffel | Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61 |

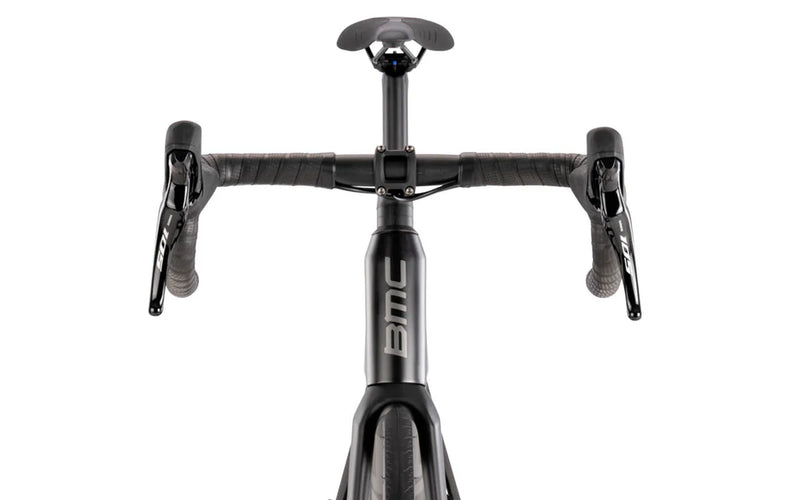

| Cockpit | Stem: BMC RSM 01 | Integrated Cockpit System Technology, Handlebar: BMC RAB 02 | Ergo Top Shape | Compact Bend [or] BMC HB D4 03, 0, 6 | Alloy 6061 | 135mm drop, 70mm reach, 6° flare |
| Sadelstolpe | Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset |
| Sadel | Fizik Antares R7 | S-Alloy rail 140mm [or] Selle Italia Model X Superflow | FeC Alloy rail | 145mm |
| Vevparti | SHIMANO 105 (FC-R7100) |
| Klingor fram | 50-34T |
| Kassett | SHIMANO 105 (CS-R7101) |
| Kassettstorlek | 11-34T |
| Kedja | SHIMANO CN-M6100 |
| Framväxel | SHIMANO 105 (FD-R7100) |
| Bakväxel | SHIMANO 105 (FD-R7100) |
| Växelhandtag | SHIMANO 105 (ST-R7120) |
| Antal växlar | 2x12 |
| Vevlager | SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB) |
| Bromshandtag | SHIMANO 105 (BR-R7170) |
| Bromsok | SHIMANO 105 (BR-R7170) |
| Bromsskivor | SHIMANO SM-RT70 | Center cap 160/160mm |
| Fälgar | PRD23 | 23mm |
| Nav | SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock| 28H |
| Däck | Pirelli P7 Sport | 26mm |
| Tubeless information | Non-Tubeless Rims | Non-Tubeless Clincher Tire |
| Däcksutrymme | 30mm measured tire |
| Vikt utan pedaler | 8.5kg | Size 54 as pictured with all accessories |
| Maximal totalvikt (Cyklist & Cykel) | 110kg |
| Storlek | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Längd på cyklist i cm | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Stack MM | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach MM (reach) | 368 | 378 | 387 | 393 | 402 | 409 |
| Seat Tube MM (st) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top Tube MM (tt) | 522 | 532 | 552 | 562 | 582 | 598 |
| Head Tube MM (ht) | 108 | 133 | 149 | 165 | 185 | 211 |
| Seat Tube Angle (sa) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork Length MM (fl) | 367 | 367 | 367 | 367 | 367 | 367 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Stem Length MM | 90 | 100 | 100 | 110 | 110 | 120 |
| Stem Angle | -6 | -6 | -6 | -6 | -6 | -6 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Drop MM | 117 | 117 | 117 | 117 | 117 | 117 |
| Bar Reach MM | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 | 76.9 |
| Post Offset MM | 10 | 10 | 10 | 10 | 10 | 10 |
| Seatpost Length MM | 335 | 335 | 385 | 385 | 405 | 405 |
